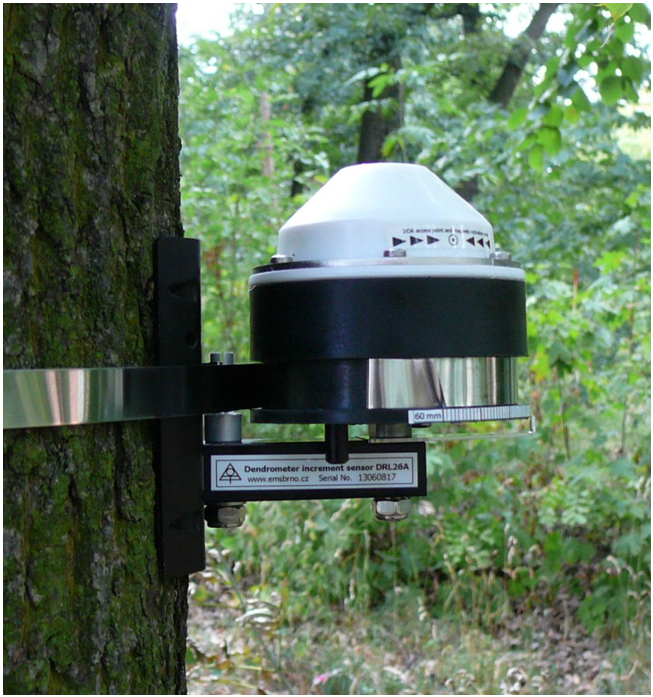

DRL26C 树木成长监测仪用于监测树干的成长微变动，使树的成长与水分关系的钻研变得更容易和更正确。传感器为不锈钢和防紫表线塑料造作，牢固耐用，适合持久监测，毋庸表接电池或太阳能板，内置锂电池和数据采集器，可纪录50000个数据，通过红表数据输出。仪器拥有较高的分辨率，可精确丈量1微米茎杆的微变动，为钻研树木在白日，夜晚等气象前提差距下的成长提供沉要数据凭据。

重要特点：

• 合用于直径大于8cm的任何树干；
• 传统机械与电子技术相结合，丈量更正确；
• 精度较高，分辨率1微米；
• 无损装置固定；
• 导出数据体式为TXT、Excel

技术参数：

• 量程：64mm成长量变动监测
• 分辨率：0.001mm
• 误差：量程2%
• 作使劲：15-20N
• 工作温度：-30-60℃
• 工作湿度：0-100%
• 温度传感器精度：±2℃
• 沉量：300g
• 数据容量：50000个数据（每幼时纪录1次则可自动纪录4年）
• 采样距离：10min-24hrs
• 电池寿命：1hr距离5年；10mins距离3年；待机5.5年
• 通讯方式：无线红表传输

?植物生理生态专业数据下载分析软件，可进行数据下载、数据在线观测、柱状图、数据建复、统计分析（如每幼时均匀、逐日均匀、总计、最幼值、最大值、数据有关分析、回归分析）与图表展示及系统设置等

?可选配MicroLog三通路泥土监测仪，实时、陆续、原位监测泥土水分、温度、水势的变动

?推荐系统：树木生理生态系统，同时对多棵树木进行实时在线监测，采集纪录树木成长、树皮温度（阴面和阳面）、树干茎流等三个生理指标的数据

利用案例

左图：3月20日–5月20日河北塞罕坝樟子松径向日动态变动；右图：9月20日–11月20日河北塞罕坝樟子松径向日动态变，引自北京大学生态钻研中心2020年《植物生态学报》钻研论文

产地：捷克

参考文件

1.Augustaitis, A. (2021). Intra-Annual Variation of Stem Circumference of Tree Species Prevailing in Hemi-Boreal Forest on Hourly Scale in Relation to Meteorology, Solar Radiation and Surface Ozone Fluxes. Atmosphere 12, 1017.

2.Bu?ková, R., Acosta, M., Da?enová, E., Pokorn?, R., and Pavelka, M. (2015). Environmental factors influencing the relationship between stem CO2 efflux and sap flow. Trees 29, 333–343.

3.Dolezal, J., Kopecky, M., Dvorsky, M., Macek, M., Rehakova, K., Capkova, K., Borovec, J., Schweingruber, F., Liancourt, P., and Altman, J. (2019). Sink limitation of plant growth determines tree line in the arid Himalayas. Functional Ecology 33, 553–565.

4.Forner, A., Valladares, F., Bonal, D., Granier, A., Grossiord, C., and Aranda, I. (2018). Extreme droughts affecting Mediterranean tree species’ growth and water-use efficiency: the importance of timing. Tree Physiology 38, 1127–1137.

5.Jamnická, G., Kon?pková, A., Fleischer, P., Kurjak, D., Petrík, P., Petek-Petrik, A., Húdoková, H., Homolová, Z., Je?ík, M., and Ditmarová, ?. (2020). Physiological vitality of Norway spruce (Picea abies L.) stands along an altitudinal gradient in Tatra National Park. Central European Forestry Journal 66.

6.Je?ík, M., Bla?enec, M., Mezei, P., Sedmáková, D., Sedmák, R., Fleischer, P., Fleischer, P., Bo?e?a, M., Kurjak, D., St?elcová, K., et al. (2021). Influence of weather and day length on intra-seasonal growth of Norway spruce (Picea abies) and European beech (Fagus sylvatica) in a natural montane forest. Can. J. For. Res. 51, 1799–1810.

7.Le?tianska, A., Fleischer, P., Mergani?ová, K., Fleischer, P., and St?elcová, K. (2020a). Influence of Warmer and Drier Environmental Conditions on Species-Specific Stem Circumference Dynamics and Water Status of Conifers in Submontane Zone of Central Slovakia. Water 12, 2945.

8.Le?tianska, A., Fleischer, P., Fleischer, P., Mergani?ová, K., and St?elcová, K. (2020b). Interspecific variation in growth and tree water status of conifers under water-limited conditions. Journal of Hydrology and Hydromechanics 68, 368–381.

9.Maicher, V., Sáfián, S., Murkwe, M., Delabye, S., Przyby?owicz, ?., Potock?, P., Kobe, I.N., Jane?ek, ?., Mertens, J.E.J., Fokam, E.B., et al. (2020). Seasonal shifts of biodiversity patterns and species’ elevation ranges of butterflies and moths along a complete rainforest elevational gradient on Mount Cameroon. Journal of Biogeography 47, 342–354.

10.Nalevanková, P., Je?ík, M., Sitková, Z., Vido, J., Le?tianska, A., and St?elcová, K. (2018). Drought and irrigation affect transpiration rate and morning tree water status of a mature European beech (Fagus sylvatica L.) forest in Central Europe. Ecohydrology 11, e1958.

11.Obojes, N., Meurer, A., Newesely, C., Tasser, E., Oberhuber, W., Mayr, S., and Tappeiner, U. (2018). Water stress limits transpiration and growth of European larch up to the lower subalpine belt in an inner‐alpine dry valley. The New Phytologist 220, 460.

12.Qian-Wen, J.I., Cheng-Yang, Z., Lei, Z., and Fa-Xu, Z. (2020). Stem radial growth dynamics of Pinus sylvestris var. mongolica and their relationship with meteorological factor in Saihanba, Hebei, China. Chinese Journal of Plant Ecology 44, 257.

13.Raffelsbauer, V., Spannl, S., Pe?a, K., Pucha-Cofrep, D., Steppe, K., and Br?uning, A. (2019). Tree Circumference Changes and Species-Specific Growth Recovery After Extreme Dry Events in a Montane Rainforest in Southern Ecuador. Frontiers in Plant Science 10.

14.?eháková, K., ?apková, K., Altman, J., Dan?ák, M., Majesk?, ?., and Dole?al, J. (2021). Contrasting Patterns of Soil Chemistry and Vegetation Cover Determine Diversity Changes of Soil Phototrophs Along an Afrotropical Elevation Gradient. Ecosystems 1–17.

15.Szymczak, S., H?usser, M., Garel, E., Santoni, S., Huneau, F., Knerr, I., Trachte, K., Bendix, J., and Br?uning, A. (2020). How Do Mediterranean Pine Trees Respond to Drought and Precipitation Events along an Elevation Gradient? Forests 11, 758.

16.Vospernik, S., Nothdurft, A., and Meht?talo, L. (2020). Seasonal, medium-term and daily patterns of tree diameter growth in response to climate. Forestry: An International Journal of Forest Research 93, 133–149.

17.Winters, G., Otieno, D., Cohen, S., Bogner, C., Ragowloski, G., Paudel, I., and Klein, T. (2018). Tree growth and water-use in hyper-arid Acacia occurs during the hottest and driest season. Oecologia 188, 695–705.
